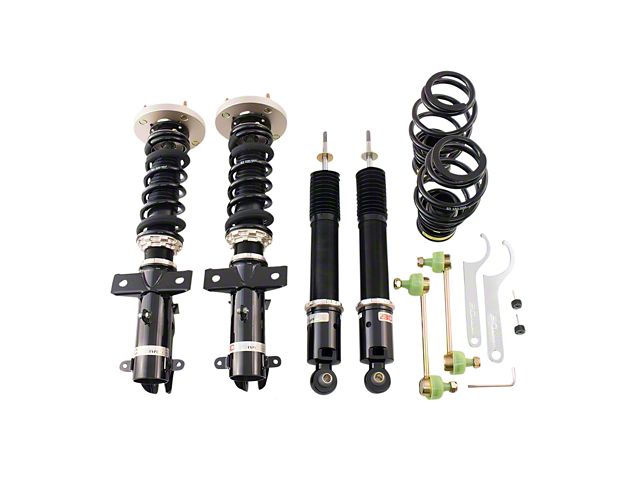

BC Racing ER Series Coilover Ford Mustang 2005-2014 - E-09-ERFind parts that fit my vehicle

Chassis Code: S197 | ER Series Coilover Ford Mustang 2005-2014 - E-09-ER

One of BC Racing's most advanced models yet is the BC Racing ER Series coilover. The ER features large external front and rear reservoirs, separate rebound and compression adjustment, and a twin piston design for maximum performance and tuning. The external reservoirs displace a higher capacity of oil allowing for cooler operating temperatures over an extended period of time. The external reservoirs also house the secondary piston which allows for the adjustment of compression. This is the perfect coilover system for the person who wants to fine-tune their setup using the separate, 30-click, rebound and compression tuning knobs. The ER Series damping (compression and rebound) can be adjusted with your fingers, meaning there is no need to carry additional tools to dial in your setup at the track.

• Front Spring 10kg
• Rear Spring 7kg
• Front Camber Plates Come Standard with this Kit
• Highly Customizable
• Mono-Tube Damper
• Linear Twin-Piston Design
• Height Adjustment Independent Of Spring Compression
• 30-Clicks Of Compression Adjustment Via The External Reservoirs
• 30-Clicks Of Rebound Adjustment From The Top Of The Damper
• Front And Rear Camber Plates Standard On All Applicable Kits
• Front And Rear Pillowball Mounts Standard When Camber Plates Do Not Apply
• Custom Spring Rates And Swift Spring Compatible
• Custom Valved To Match The Drivers Requested Spring Rates
• Swift Spring Upgrade Available On Most Applications
• 1-Year Warranty Against Manufacturers Defect
• Fully Rebuildable
• Contact Customer Support for custom spring rates, swift spring upgrades, as well as other optional customizations that may be available for this product.
• FREE Ground Shipping on All BC Coilovers! Automatically applied at checkout. (Domestic US Only)
• All prices, specs, fitment, and drop are subject to change without notice
• All kits are 2WD unless specified AWD
• Some RM Series & Most ER Series systems use different spring rates than BR Series. Please inquire if necessary.
• Notes regarding electronic damping (EDC, DDS, etc.) pertain to physical fitment only. BC Racing kits DO NOT interface w/ OEM electronic damping control systems.
