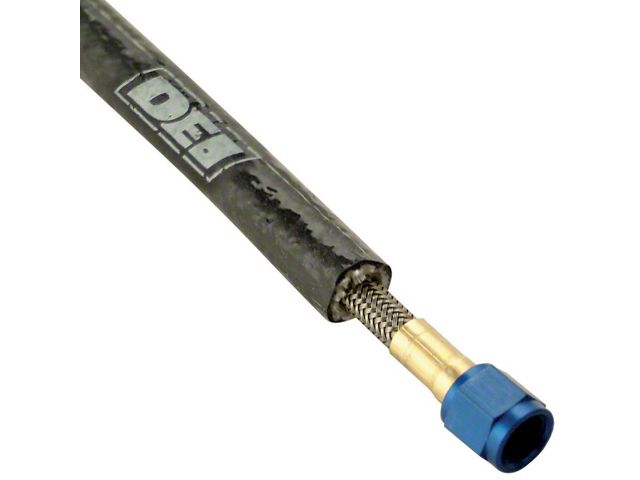

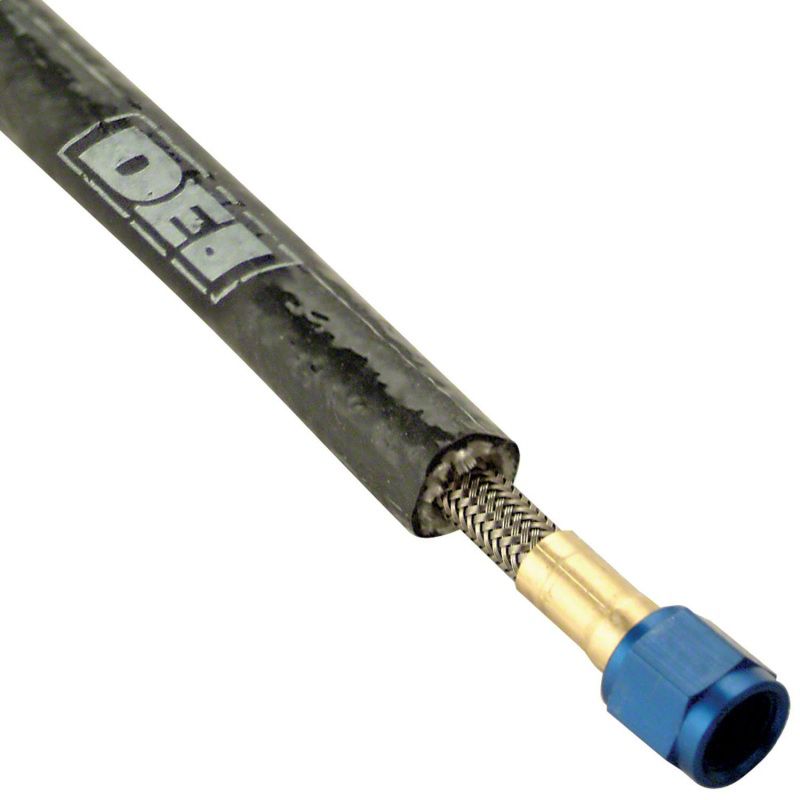

DEI Fire Sleeve and Tape Kit; 0.75-Inch x 36-Inch (Universal; Some Adaptation May Be Required)
Item TL-307388
$0.00
Our Price
$31.99
VIP Program
• Earn $1.60 in VIP Cash Rewards
• Free Shipping on orders over $99
Join VIP
Coupon
Automatic entries to sweepstakes
Learn More
W/VIP
160
No VIP
32
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Description, Q&A
Description
Fire Sleeve solves the problem of heat and abrasions damaging fuel, transmission and brake lines and is a fireproof solution. Constructed from a high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100% iron oxide silicone rubber, Fire Sleeve thermal insulator sleeve provides the ultimate in heat insulation and protection from direct heat up to 500°F. Includes a 16-inch length of black Fire Tape, an adhesive-free, self-adhering tape, to finish off ends of Fire Sleeve or when joining two Fire Sleeves together while presenting a clean and professional look. Insulates wiring, hoses, oil / brakes / transmission lines & more Use for bundling & protecting hoses, electrical wiring, etc. Withstands 2000°F of intermittent heat Includes 16 inches of black Fire Tape Size: 0.75 (3/4) inch x 36 inches
Fitment Chart
| AN Size | Metal Tube O.D. | Thread Size |
| 2 | 1/8 in. | 5/16 24 SAE |
| 3 | 3/16 in. | 3/8 24 SAE |
| 4 | 1/4 in. | 7/16 20 SAE |
| 5 | 5/16 in. | 3/8 18 SAE |
| 6 | 3/8 in. | 9/16 18 SAE |
| 8 | 1/2 in. | 3/4 16 SAE |
| 10 | 5/8 in. | 7/8 14 SAE |
| 12 | 3/4 in. | 1-1/16 12 SAE |
| 16 | 1 in. | 1-5/16 12 SAE |
| 20 | 1-1/4 in. | 1-5/8 12 SAE |
| 24 | 1-1/2 in. | 1-7/8 12 SAE |
| 28 | 1-3/4 in. | 2-1/4 12 SAE |
| 32 | 2 in. | 2-1/2 12 SAE |
Fire Sleeve Application Chart
| Part# | Name | Line Size* |
| 10470 | 3/8 in. Fire Sleeve | 3AN4AN6AN** |
| 10472 | 5/8 in. Fire Sleeve | 6AN8AN |
| 10474 | 1 in. Fire Sleeve | 10AN12AN16AN**5/8 in. Heater Hose3/4 in. Heater Hose |
*Braided Kevlar line was used in testing. You may notice a slight difference in size if you have Braided Stainless Steel lines.
**Tight fit: If you have fittings on your line, you may need to order one size up. You can achieve between 1/16 in. and 1/8 in. stretch out of our material. This may help on installs with fittings already on the lines.
DEI 10473
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
