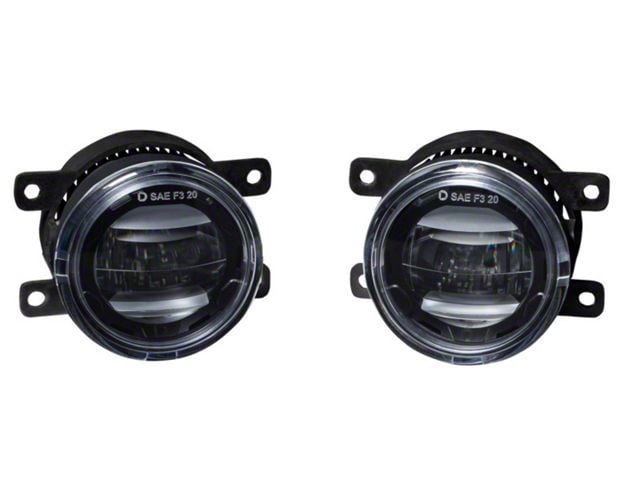

Diode Dynamics Elite Series Type A LED Fog Lights; White

Item TL-611088
Product Image
10 Reviews
Our Price

$259.95

VIP Program • Earn $13.00 in VIP Cash Rewards • Free Shipping on orders over $99
Join VIP
Military, Medical & First Responders $13.00 Available in TL Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Reviews, Q&A

      Features

      • High-Performance OEM-Grade Replacement
      • Custom-Engineered Optic Provides Extremely Wide, Intense Light Output
      • Distinctive Integrated Amber Backlight
      • Road-Legal Fog Light SAE F3 Compliant
      • Plug and Play Main Beam, No Modification Needed
      • Engineered and Assembled in USA
      • Output That Outperforms With Custom-Engineered Single-Piece Toroidal Lens
      • Highly Intense Light Spread of 80 Degrees With Smooth Pattern and Sharp Cutoff to Avoid Glare
      • Available in Cool White 6000K Color Temperature or Selective Yellow 3000K
      • Integrated Amber Accent Backlight That Can Be Wired to Constant 12-Volt Source
      • Bolt-On Fitment With Glass-Fiber-Reinforced Brackets and Built-In Adjustment
      • Includes Waterproof Plug-and-Play Adapters for Factory Bulb Sockets
      • Assembled in USA Using OEM-Grade Materials Including Precision Aluminum Casting, UV-Coated Lens, and Copper-Core Circuit Board
      • Robotic Sealed With Urethane Epoxy for Moisture Protection
      • Extensively Tested for Reliability With Vibration, Temperature, Moisture, and Corrosion Tests
      • Built-In Circuit Protection for Voltage Spikes and Reverse Polarity
      • Comes With 8 Year Limited Warranty
      • Includes Two Fog Lamps, Two H11 4-Pin DT Backlight Tap Wires, Two T-Taps, and Mounting Guide
      • Backlight Shuts Off Automatically When Main Beam Is Activated
      • Raw Lumens: White 1850, Yellow 1650, Backlight 14
      • Intensity: White 13000 Cd, Yellow 11400 Cd
      • Beam Angle 80 Degrees by 6 Degrees Fog Pattern
      • Power Consumption 18 Watts for Main Beam, 0.3 Watts for Backlight
      • Operating Voltage 9 to 16 Volts
      • Current Draw 1.4A Main Beam, 25mA Backlight at 13.2V
      • Wire Sizes 16 AWG and 18 AWG
      • Polarity Specific
      • Operating Temperature Range -40°C to 85°C (-40°F to 185°F)
      • Multi-Die Automotive LED Emitters
      • Deutsch DT Connector Input
      • Constant Current Driver
      • Copper PCB, UV-Coated Polycarbonate Lens, Precision Aluminum Casting Materials
      • Passive Cooling with Pin-Fin Heatsink
      • SAE J575 Durability and SAE J583 Foglamp Beam Pattern Compliance
      • IP68 Waterproof Rating
      • Unit Weight 0.85 Pounds Per Lamp
      • Shipped Weight 2.75 Pounds

      Description

      High-Performance Fog Lighting. The Diode Dynamics Elite Series LED Fog Lights in White deliver superior lighting performance with advanced optics designed to provide an intense and wide beam pattern for increased visibility in adverse weather conditions. These fog lights serve as direct replacements for factory units, improving both functionality and vehicle aesthetics without requiring modification.

      Construction and Appearance. Manufactured with precision aluminum castings, copper-core circuit boards, and UV-coated polycarbonate lenses, these fog lights feature a durable and corrosion-resistant build. The sealed design includes urethane epoxy sealing for moisture resistance, and the passive cooling system employs a pin-fin heatsink to maintain optimal operating temperatures.

      Installation. Designed for a bolt-on fit, installation requires no modifications, drilling, or special tools beyond a basic toolset. Most installations can be completed within 30 to 60 minutes, and the system includes plug-and-play wiring adapters compatible with factory sockets.

      Warranty. This product includes an 8-year limited warranty providing extended protection against defects in materials and workmanship.

      Diode Dynamics DD5128P
