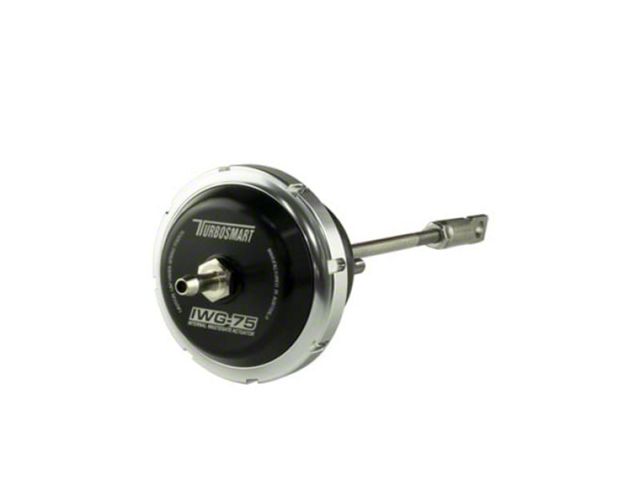

Turbosmart IWG75 Wastegate Actuator; 14 PSI (16-18 Focus RS)

Item TL-645896
Product Image
Our Price

$190.79

VIP Program • Earn $9.54 in VIP Cash Rewards • Free Shipping on orders over $99
Join VIP
Military, Medical & First Responders $9.54 Available in TL Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

      • Upgraded Wastegate Actuators Developed To Provide Maximum Boost Response For Factory Frame Turbocharger
      • Increased Working Ratio Over Factory Equipment For Improved Boost Response Through RPM Range
      • Working Ratio Improved By Increasing Effective Surface Area Of Diaphragm And Revising Springs
      • Greater Leverage Against Boost And Backpressure With Enhanced Responsiveness
      • Same Base Pressure As Factory Yields Broader Boost And Torque Curve, With Earlier And Sustained Peak Boost
      • Higher Base Pressures Available But Require Tuning And Recalibration
      • Available In 12psi And 14psi Versions
      • Proprietary Silicon Nomex Diaphragm
      • Choice Of Springs From 3psi To 26psi Optional
      • High-Grade Billet Aluminum Construction
      • Stainless Steel Rods And Clevis
      • Unique Locking Collar System
      • 12psi Version Direct Replacement Without ECU Tuning
      • Installation Guide Provided
      • Includes Wastegate Actuator, Pre-Fitted Springs, Fasteners, And Swivel Hose Barb
      • Fits 16-18 Focus RS With 2.3L EcoBoost Engine

      Description

      Boost Response Enhancement. The Turbosmart IWG75 Wastegate Actuator 14 PSI improves the boost response of the factory turbocharger by increasing the effective diaphragm surface area and using revised springs for superior leverage against boost and backpressure. It enables earlier peak boost and a broader torque curve, enhancing engine performance across the RPM range.

      Construction and Appearance. This actuator features a high-grade billet aluminum body coupled with stainless steel rods and clevis for durability and precision. The diaphragm is made from a proprietary Silicon Nomex material designed for high performance and longevity, with a sleek, durable finish that withstands harsh operating conditions.

      Installation. Installation is straightforward with a bolt-on fitment to the factory turbocharger, requiring no drilling when replacing the 12psi version. Higher pressure versions may require ECU tuning or recalibration to achieve optimal performance.

      Application. Specifically designed to fit 16-18 Focus RS.

      Turbosmart TS-0622-9142
