BC Racing BR Series Coilover Mazda MX-5/Miata 1989-2005 - N-04-BRFind parts that fit my vehicle

About BC Racing

BC-Racing was founded back in 1999 in Nantou, Taiwan, with the first BC-Racing coilover to debut in Taiwan in 2003, which was then made available worldwide in 2004. BC Racing Coilovers are highly customizable to allow all end-users to purchase the perfect setup for their specific needs. BC Racing understands that each driver and each vehicle have different needs. To allow customers to see their projects come to fruition, exactly how they envision them, BC Racing offers complete customization of all coilover systems. Each coilover can be ordered with custom spring rates, damper lengths, valving, braided line lengths for double and triple adjustable coilers, camber / caster plates, and proprietary 62 ID Swift Springs.

Product Details

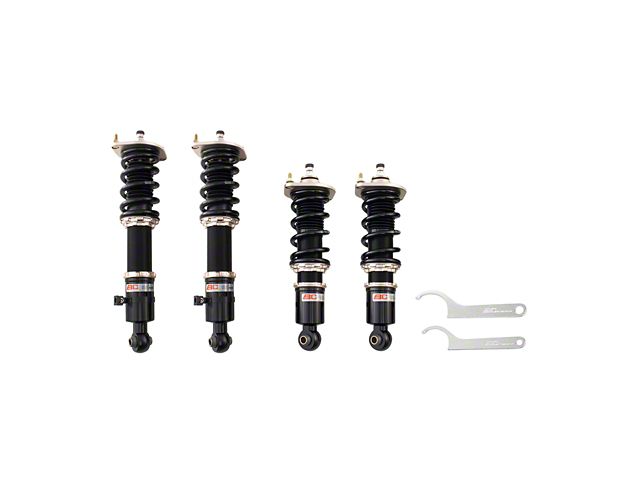

Chassis Code: NA8C | BR Series Coilover Mazda MX-5/Miata 1989-2005 - N-04-BR

The BC Racing BR Series is designed with you, the driver in mind and is equally at home on street and track. Out of the box, the BR Series offers 1 inch lower ride height over your OEM suspension with 30 clicks damping adjustability. Damping is adjusted simultaneously and height is adjusted independently of piston and spring stroke. The BR Series offers a minimum 2 inch drop at its lowest setting. Assembled by hand, each application undergoes stringent quality control protocols to deliver a high quality suspension product to you, the consumer without a hard hit on your wallet. The most added value to customers is the option to customize spring and damping rates to your individual preference. The BR Series is not meant as an entry level suspension setup but as a versatile setup that excels across a number of automotive disciplines.

• Front Spring Rate 10kg
• Rear Spring Rate 8kg
• Aluminum Alloy Front and Rear Upper Mounting Hardware
• Highly Customizable
• Mono-Tube Shock Design
• Linear Piston And Damping Curve
• Height Adjustment Independent Of Spring Compression
• 30-Clicks Of Simultaneous Compression/Rebound Adjustment
• Front Camber Plates Standard On Applicable Kits
• Rear Camber Plates Available For Applicable Kits
• Custom Spring Rates And Swift Springs Available
• Custom Valving Or Valving Paired For Custom Spring Rates
• 1-Year Warranty Against Manufacturers Defect
• Fully Rebuildable
• Contact Customer Support for custom spring rates, swift spring upgrades, as well as other optional customizations that may be available for this product.
• FREE Ground Shipping on All BC Coilovers! Automatically applied at checkout. (Domestic US Only)
• All prices, specs, fitment, and drop are subject to change without notice
• All kits are 2WD unless specified AWD
• Some RM Series & Most ER Series systems use different spring rates than BR Series. Please inquire if necessary.
• Notes regarding electronic damping (EDC, DDS, etc.) pertain to physical fitment only. BC Racing kits DO NOT interface w/ OEM electronic damping control systems.

Vehicle Fitment

• 1990 Mazda Miata Base
• 1991 Mazda Miata Base
• 1991 Mazda Miata SE
• 1992 Mazda Miata Base
• 1993 Mazda Miata Base
• 1993 Mazda Miata LE
• 1994 Mazda Miata Base
• 1994 Mazda Miata M Edition
• 1995 Mazda Miata Base
• 1995 Mazda Miata M Edition
• 1996 Mazda Miata Base
• 1996 Mazda Miata M Edition
• 1997 Mazda Miata Base
• 1997 Mazda Miata M Edition
• 1997 Mazda Miata STO
