Mishimoto Compact Baffled Oil Catch Can 3-Port - Red - MMBCC-CBTHR-RD

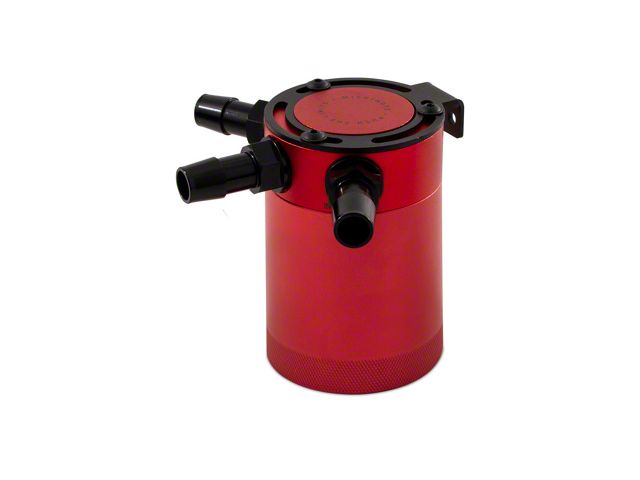

Mishimoto Compact Baffled Oil Catch Can 3-Port - Red

• Compact design with 3-port option
• Separates oil particles from PCV/CCV air
• Internal air diverter for maximum oil separation
• 50 micron bronze filter for clean air passage
• Internal baffle to prevent oil splashing
• 100% billet, 6061 aluminum construction
• 3/8" NPT threads at inlet, outlet, and drain
• Includes two black nylon fittings for easy installation
• Top mounting setup for multiple angle installation
• Removable drain plug for easy maintenance
• 100% washable can
• Traps blow-by to keep it out of the engine

Mishimoto is proud to announce the release of our Compact Baffled Oil Catch Can, available in a two-port or three-port option. With years of oil catch can research and development time, Mishimoto has created the most effective compact oil catch can on the market. The Mishimoto Compact Baffled Oil Catch Can was designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. The internal air diverter turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 50 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.

This oil catch can features two ports, one inlet and one outlet, for easy installation on CCV and PCV systems. The 100% billet, 6061 aluminum can features 3/8" NPT threads at the inlet, outlet, and drain area and includes two black nylon fittings to make installation effortless. For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. The can is also 100% washable, unlike many other cans that require you to replace your filtration system.

Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what we've seen in the bottom of our catch cans, you won't want that draining back into your oil either.

Whether it's for a full rebuild or some standard maintenance, the proper engine components are needed to make sure your vehicle is running smooth. Oil catch cans can help prevent the loss of horsepower in your vehicle. A properly set up oil catch can will reduce the amount of oil vapors that are re-circulated into the intake of your engine.

Additional Details

Warning: This product listing contains generic images

WARNING: Cancer & Reproductive Harm. For more information, go to www.P65Warnings.ca.gov

About Mishimoto

Mishimoto, the world leader in performance cooling products, was created for automotive enthusiasts by automotive enthusiasts. Established in 2005, we have more than a decade of experience in working toward our goal of providing superior cooling system upgrades for sport compact, modern muscle, European performance, classics, Jeeps, and trucks.

Vehicle Fitment:

Universal fitment for various vehicles.
