RockJock TJ/LJ/XJ/MJ/ZJ Johnny Joint Rod End 2in Narrow Front Trac - RJ-305301-102

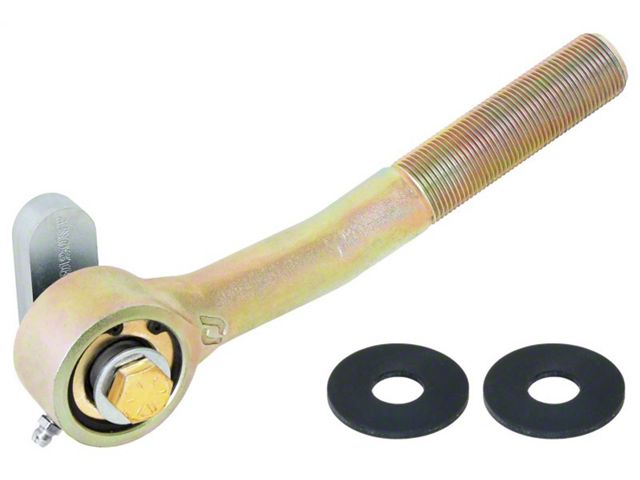

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, narrow body and features a 9 in. long shank, from CL of joint to end of tip of threads), 3 1/2 in. of 1 in.-14 RH threads and a 1.600 in. wide x 0.510 in. thru-hole center pivot ball. Being that, in our applications, we use this specific joint in TJ, LJ, XJ, MJ and XJ front trac bars, the shank portion features a 12 degree vertical bend, 3 1/2 in. from the joint Cl, as seen in the photo, making it specific to fitment in this application. Finish is gold zinc plating. RockJock Forged Johnny Joint Rod Ends are found incorporated into our suspension kits and components, but are also available individually for universal usage when custom suspension is being fabricated. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating.

Suspension components are key to making sure your car is riding smoothly on or off the road. With upgraded suspension components, you can unlock the full potential of your vehicles performance.

A true wheeler at heart, founder John Currie applies over 40 years of the Currie family's generational experience in heavy-duty equipment to RockJock, developing upgraded suspension for Jeeps. By taking his passion project to off-road competitions like the Extreme Rock Crawling Championship Series, King of the Hammers, Jeepspeed Challenge, and more, RockJock 4x4's products have proven their capability to outlast and out-flex the competition. The company's industry-shaping products, like greaseable Johnny Joint rod ends and three-piece Antirock sway bars, dominate the Jeep aftermarket by providing unmatched articulation to outperform its rivals. Ensuring consistent geometry mile after mile from its Johnny Joints, RockJock 4x4 integrates its unique RockNut jam nuts to firmly secure crucial alignment components using a steel nut with a female taper that slides over the control arm's aluminum bung with a male taper. Additional product lines such as spare tire delete panels, steering kits, and towing solutions round out RockJock 4x4's offerings, making it a do-it-all brand for serious off-roaders. RockJock's trusted pedigree in Jeep applications has recently expanded to include the new Ford Bronco platform, bringing outstanding off-road control to a new mob of enthusiasts and competitors.
