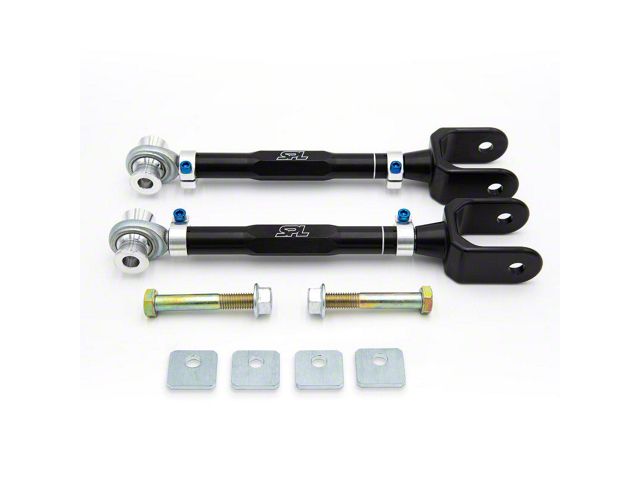

SPL Parts Adjustable Rear Toe Links - RTAEL CN7Find parts that fit my vehicle

SPL rear toe arms provide a large range of adjustment to properly correct the rear toe angle and increase the vehicle's overall stability by reducing unwanted toe angle shift from bushing deflection, especially with high cornering or braking loads and over bumps. The result is better handling, driving feel, and improved tire life.

Benefits:

• Large Toe Adjustment Range
• Improved Tire Wear, Stability, and Handling
• On-Car Adjustable with No Jam Nuts
• Lightweight, High Strength Construction
• Maintenance-Free, US Made, PTFE-Lined FK Rod Ends
• Fixes Slipping Issue with OEM Eccentrics

Eccentric Lockout Kit Included

Eccentric bolts are prone to slipping with increased cornering loads. To solve this our toe eccentric lockout kit is included in this toe arm kit (RTAEL), which replaces the OEM Hyundai eccentric bolts with lockplates and non-eccentric bolts to lock down your alignment.

Easy, On-Car Adjustments

The anodized 2024-T351 aluminum arm uses opposing thread patterns (RH and LH) to allow you to adjust the toe while it is still installed. Simply loosen the aluminum clamps with a 5/32" hex key, elongate or shorten the arm by turning, then tighten the titanium cap screws. That's it, no need for fumbling wrenches trying to tighten a jam nut while you keep the arm the exact same length.

Materials:

• 2024-T351 aluminum hollow arm (anodized black)
• 6061-T6 aluminum clamps
• 6061-T6 aluminum clevis
• Titanium 1/4-20 socket head bolts (anodized blue)
• FK PTFE-lined rod ends (F1 spec, self-cleaning)

Suitable for all uses, from daily driver to race car.

Category Description:

Suspension components are key to making sure your car is riding smoothly on or off the road. With upgraded suspension components, you can unlock the full potential of your vehicles performance.

Subcategory Description:

Suspension arms connect your wheel hubs to the chassis of your vehicle. With a quality set of control arms you can fine tune your suspension and ride quality.

Brand Description:

SPL Parts sources certified materials from the USA, where they are then CNC machining by local machine shops that have years of high-tech machining experience, meeting SPL Parts exacting tolerances. All parts are hand-fitted to ensure a good fit and smooth threading. In addition, TIG welding is performed by local professional welders with years of experience as well, to ensure the highest quality welds for maximum strength. All SPL Parts are made with pride in the USA by skilled machinists/welders, using quality materials and finishes, innovative designs, and in-house research and development.
