UMI Performance 82-92 GM F-Body Torque Arm Relocation Kit- T5 - 2228-BFind parts that fit my vehicle

Item TL-334030
Product Image
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$269.99

VIP Program • Earn $13.50 in VIP Cash Rewards • Free Shipping on orders over $99
Join VIP

Automatic entries to sweepstakes Learn More
W/VIP 1350
No VIP 270
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Description, Q&A

      Description

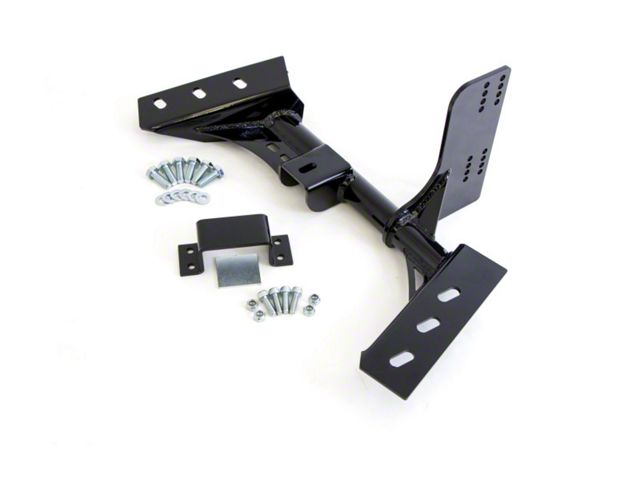

      The torque arm relocation kit from UMI Performance is designed to remove the front mounting point of the torque arm off the transmission and protect the tail shaft from damage. General Motors tail shaft mounted design works great for a stock driven vehicle however it is not designed to take abuse and hard launches. This set-up replaces your transmission cross member with a new stronger set-up with a built in torque arm mount. Each relocation kit is designed to fit a specific transmission and will work with virtually any stock style aftermarket torque arm as well as the factory torque arm. The relocation kit also features instant center adjustment by moving the front of the torque arm up or down. This unit is built using DOM mild steel tubing, 0.188" mild steel mounting plates and includes all appropriate hardware needed for the installation. The torque arm mount is machined from 0.250" thick mild steel and features a new clam shell for appropriately attaching the torque arm to the new cross member. This relocation kit will work with both the manual T5 and automatic 700R4 transmission. Please use the FAQs below for additional information.

      FAQs:

      Q: What does this kit do?
      A: Our transmission cross member is supplied with a built in torque arm mount removing the torque arm from the transmission tail shaft and protecting the tail shaft from failure.

      Q: Does this new relocation kit reduce ground clearance?
      A: No, our cross member is designed to tuck tight against the vehicle chassis and will not affect vehicle ground clearance.

      Q: Which brand torque arms will this work with?
      A: This set-up will work with virtually any torque arm on the market as long as it bolts into the stock location. It will also work excellent with the stock torque arm when using a 1-piece bushing (item #3004).

      Your drivetrain is all the components responsible for transferring power from your engine and delivering it to the wheels. Drivetrain components are vital to your vehicle's operation.

      UMI Performance manufactures domestic vehicle suspension components that are track-tested, and street approved. With roots in precision components manufacturing, UMI Performance engineers quality into every product it produces. For over 16 years, UMI Performance has produced suspension parts in-house at its Philipsburg, PA facility with 100% U.S.-sourced raw materials. The team at UMI Performance is comprised of engineers and sales representatives that are true racers. They proudly race the products they produce and use that experience to design and further develop their products. Crucially, they have developed their product to be capable at the track and usable for daily commuting. Its product lines are also designed with installation in mind, as most components are factory replacement parts that require little to no fabrication. Any products that do require fabrication include clear step-by-step instructions to ensure enthusiasts get the most out of their vehicles.

      UMI Performance 2228-B
